Climbing frame for playground Wickey PRO GIANT Vivid
SALE
Climbing frame for playground Wickey PRO GIANT Vivid
Expand your facility with one of our climbing frames from the PRO GIANT series and create an attractive play area with the best price-performance ratio.
... show more£1,949.00
Incl. 20% VAT. and all import fees
Delivery expected from Q2 2025 (We will inform you about the precise delivery date in the meantime)
Wickey - That's why
- Easy returns & exchanges
- Flexible payment options
- Free delivery² from £70.00
- Pressure-treated solid wood

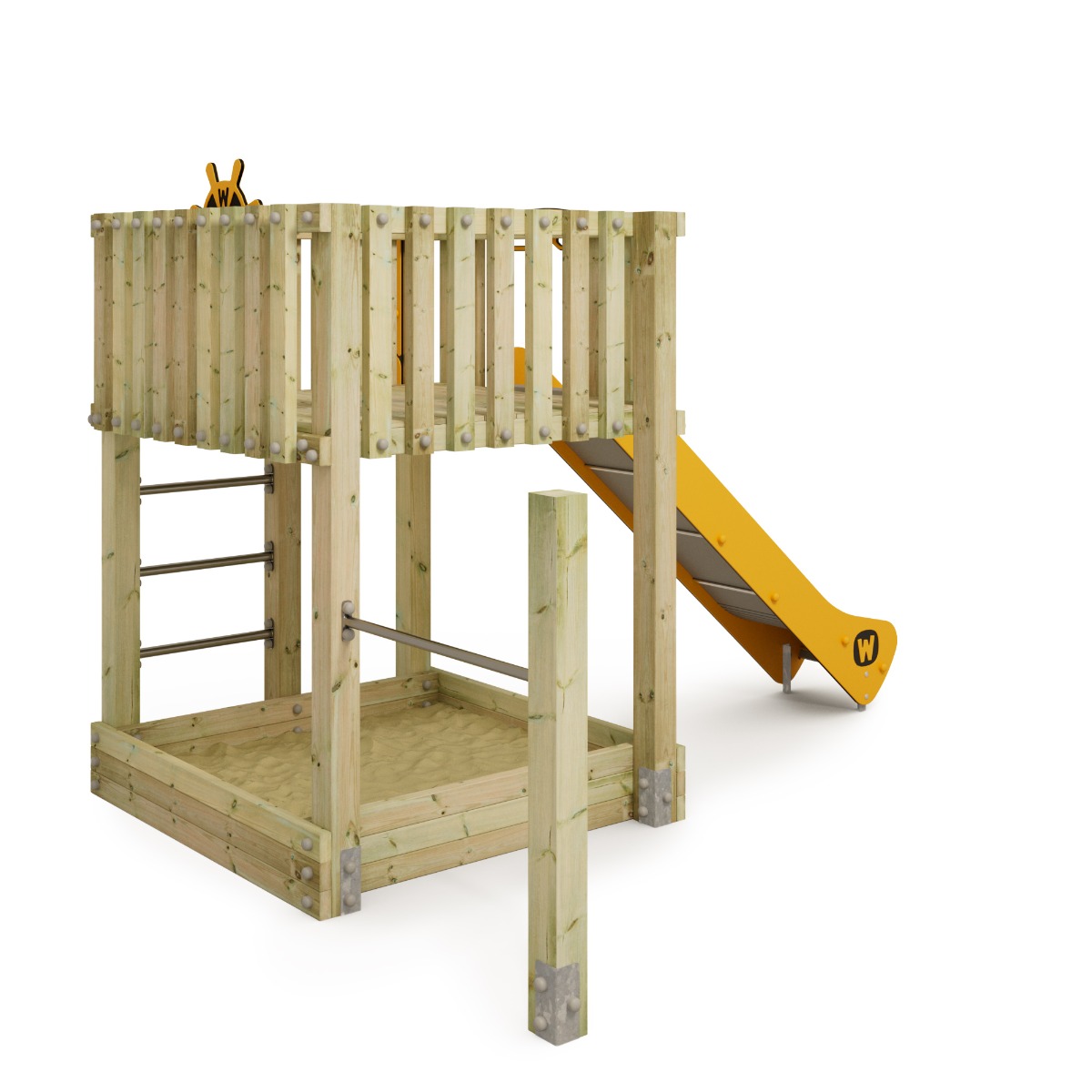

Climbing frame for commercial playgrounds Wickey PRO GIANT Vivid
Expand your facility with one of our climbing frames from the PRO GIANT series and create an attractive play area with the best price-performance ratio. This robust commercial playground, which is made from up to 80% recycled HDPE elements and solid 11x11 cm thick wooden posts, can be customised to meet your requirements. You can also choose the exact position of the slide and the climbing wall or ladder. The large platform (151x151 cm) at a height of 149 cm offers exciting play opportunities, while the grab rail above the slide provides additional safety for children. You can also choose one of our models with an integrated sandpit, allowing children more room for creativity. All necessary anchors are included for optimum stability.
Absolutely professional
Have you always wondered why commercial playgrounds are so expensive? We at Wickey find ourselves asking the very same question, and so, we have set ourselves the goal of creating a professional and high-quality solution that remains affordable. Let yourself be surprised by our solid wood construction, our unique design, and the numerous play options - and then marvel at the prices of the Wickey PRO GIANT series.
For a non-binding offer or general questions about the PRO GIANT series, please contact us via our contact form.
Product information
- Impregnated solid wood
- Order rubber tiles at the same time, depending on regulations
- All metal parts and visible screws are made of A2 stainless steel (except Wickey PROLock angle anchors)
- 19 mm thick sheets made of two-tone HDPE, vandalism-resistant, up to 80% recycled
- 5-year warranty³ on all wood, stainless steel and HDPE parts
Product details
Dimensions may differ slightly from those stated.
| SKU | 100905_k |
|---|---|
| Platform height(s) | 149 cm |
| LxWxH | 252x359x218 cm |
Installation area  The installation area is the m² area that your playground equipment occupies. Please also observe the minimum safety distances between walls, trees or fences. | 9,05 m² |
| Number of users | 14 (variants without sandpit) | 21 (variants with sandpit) |
| Maximum height of fall | 149 cm |
| Platform surface | 2,28 m² |
| Standard European standard for the safety of toys. | Quality and safety tested in accordance with EN-1176 |
| Series / Post thickness | Wickey GIANT-Series / 11x11 cm |
Delivery contents
- Wood package
- (Optional) Slide Premium HDPE 150
- (Optional) High-quality HDPE slide with (additional) stabilising stainless steel struts
- 3 metal rungs made of stainless steel
- 1 Ship's Wheel Wickey PRO Wheel commercial
- 7 Wickey PROLock angle anchors made of hot-dip galvanized steel for setting in concrete
- 1 horizontal bar made of stainless steel
- 2 XL HDPE handles
- 1 Banners made of HDPE
- 1 Slide handle made of HDPE
- Including all necessary screws
- Detailed instructions for simple assembly
- Service log book for test reports
- Wickey Aluminium ID plate
Special features
- Straight climbing ladder with stainless steel rungs
- Gymnastics extension with stainless steel horizontal bar
- (Optional) Integrated, raised XL sandpit (151x151 cm)
Important product information
Attention
Not recommended for children under 3 years of age
Use under the direct supervision of adults
The indicated measurements and colours may vary slightly
Reviews
Write Your Own Review
At Wickey, we verify that all published reviews are from consumers who have actually purchased and/or used the products that we offer. The verification is done based on the order number.
Get the best tips on our wooden products here
Solid spruce and pine wood from Europe give our playground equipment its individual character. As a sustainable material, they offer a natural look and are particularly durable outdoors. We place special emphasis on the responsible use and quality of our wood to ensure that your children can play safely.
Wood from Europe
- Most of our wood comes from domestic forests in southeastern Germany.
- For our playground equipment we use impregnated pine or spruce wood.
- Wickey wood stands for exceptional durability outdoors.
Natural and sustainable cultivation
- We place special emphasis on the quality and responsible use of our wood.
- Our wood grows slowly, which makes it harder and more durable.
- The impregnation makes the wood more durable and is biologically safe for humans, animals and plants.
A living material with optimal fitting accuracy
- It is perfectly normal for the volume of the wood to change due to moisture absorption/drying.
- Because of this, unpack your wood directly and let it dry for at least 2 days before assembly.
- Subsequently, some wooden elements should be pre-drilled by yourself to ensure accuracy of fit and stability.
- We recommend lightly sanding the edges created by the production process. Depending on the surface, choose sandpaper with a rougher or finer grit - light sanding is sufficient.
TIP
In our assembly video, you will find many helpful tips for the assembly of your climbing frame!
Boiler-pressure impregnation
- Boiler pressure impregnation that protects against environmental factors increases the service life of your playground equipment.
- The wood is therefore particularly easy to maintain, as no additional sanding and painting are required, saving you effort, time and money.
- Due to the mixture of leaking resin and the ingredients of the pressure impregnation, greenish colouration may occur. This is completely harmless.
TIP
Immediately unpack the wood and allow it to dry for at least 2 days so that any moisture from the impregnation process is completely gone from the wood. This ensures optimal conditions for the next steps and the longevity of the wood.
Individual characteristics
- Knots, grains and pith are part of the natural characteristics of wood.
- Cracks with a length of up to ¼ of the sawn timber length and ¼ of the cross-section depth are statically harmless!
- Drying cracks are permissible according to DIN 4074.
TIP
Are the wooden parts of your playground equipment showing cracks? Send us a photo via our contact form. Our technical staff will be happy to advise you.
Superficial colouring
- Superficial white to greenish spots are harmless.
- They are caused by leaking resin and the ingredients of pressure impregnation, which collect on the surface.
- Their appearance will even out over time due to outdoor weathering.
TIP
Heavily affected areas can be lightly sanded!
TIP
Do you prefer things to be colourful? Choose a colour that is safe for children and the environment, certified according to DIN EN 71 Part 3.
Frequently asked questions
Is there a guarantee on the commercial products?
If you purchase our Wickey anchors for attaching the climbing frame at the same time, you receive a 5-year guarantee on all wooden parts. Important details can be found in our Statement of Guarantee.
As a B2B customer, may I also use the climbing frames for private use?
Unfortunately, this option is not possible because there are legal requirements for the construction of playground equipment for public use. Commercial playground equipment must be certified according to specific DIN standards. All our EN-1176-certified playground equipment comes with a certificate and nameplate. Feel free to check out our large selection of playground equipment for public areas here Commercial playground equipment
How is the base frame constructed and how are the anchors set in concrete?
Proceed as follows when concreting in the anchors/erecting the base frame:
- Assemble the base frame and place it in its final position. Please observe the safety distances indicated in the installation instructions.
- Stake out the places around the posts where the base frame is to stand. Position the base frame so that all holes can be excavated easily. Tip: the holes should be approx. 70cm deep and have a diameter of around 30cm.
- Mount the anchors on the inside of the posts.
- Place the basic frame into its final position.
- The climbing frame must be horizontally level. You can use stones or wooden wedges to achieve this.
- Pour the ready-mixed concrete into the holes until they are filled to approx. 60cm. Make sure that only the anchors are covered with concrete, and that the posts remain free.
- When the concrete has set, you can fill in the rest with topsoil.
Please ensure that the supporting posts of your climbing frame are in contact with the ground when concreting them in. Correct anchorage is necessary for the stability of your climbing frame and helps to prevent danger spots. It also protects your screws from premature rusting.
Does my product require TÜV approval?
After assembly, an acceptance test should be carried out by the TÜV or similar.
Please get in touch with your local authority to obtain approval of your equipment before putting it into use.
They put in an order for your playground equipment to be inspected. Approval can only be successful if the assembly is carried out exactly according to our assembly instructions.
You will be given detailed assembly instructions that guide you step by step on how to assemble the units. It is important to follow the instructions carefully in order to obtain TÜV certification.
The requirements for TÜV approval of commercial climbing frames can vary depending on the country, region and applicable regulations. In many countries, the local authorities have specific safety standards for kids' playgrounds and playground equipment.
We recommend contacting the local authorities before installing a commercial climbing frame to ensure that all necessary permits and safety checks have been obtained.
Do I need rubber tiles for the PRO MAGIC climbing frames?
According to EN-1176, a European standard for playground equipment, there are specific guidelines for the required layer thickness of rubber tiles, sand or bark mulch. These specifications are intended to ensure that the rubber tile adequately cushions the impact of a fall from a certain height. The exact specifications may vary depending on the country, region and specific regulations, but here are a few general guidelines according to EN-1176:
- 1. Rubber tiles: When using rubber tiles, the thickness of the tiles should depend on the drop height of the climbing frame. EN-1176 gives specific values. For example, a drop height of 1.50 metres could require a minimum thickness of 30 millimetres, while a drop height of 3.00 metres could require a minimum thickness of 60 millimetres. However, these values are only examples and may vary depending on the country and applicable regulations. 2. Sand or bark mulch: EN-1176 also contains requirements for the layer thickness of sand or bark mulch depending on the drop height. Exact specifications may vary, but typically a layer thickness of about 40 centimetres of sand or 20 centimetres of bark mulch is recommended for a drop height of around 1.50 metres. For higher drop heights, the layers may need to be correspondingly thicker.
It is important to note that these details are intended as general guidelines and may differ from the specific requirements of your region. To meet the exact requirements for rubber tiles under a commercial climbing frame in accordance with EN-1176, you should contact the local authorities, playground experts or a certified expert who can give you precise information on the required layer thickness for your specific drop height.
Do I need rubber tiles for the PRO GIANT play towers?
According to EN-1176, a European standard for playground equipment, there are specific guidelines for the required layer thickness of rubber tiles, sand or bark mulch. These specifications are intended to ensure that the rubber tile adequately cushions the impact of a fall from a certain height. The exact specifications may vary depending on the country, region and specific regulations, but here are a few general guidelines according to EN-1176:
- 1. Rubber tiles: When using rubber tiles, the thickness of the tiles should depend on the drop height of the climbing frame. EN-1176 gives specific values. For example, a drop height of 1.50 metres could require a minimum thickness of 30 millimetres, while a drop height of 3.00 metres could require a minimum thickness of 60 millimetres. However, these values are only examples and may vary depending on the country and applicable regulations. 2. Sand or bark mulch: EN-1176 also contains requirements for the layer thickness of sand or bark mulch depending on the drop height. Exact specifications may vary, but typically a layer thickness of about 40 centimetres of sand or 20 centimetres of bark mulch is recommended for a drop height of around 1.50 metres. For higher drop heights, the layers may need to be correspondingly thicker.
It is important to note that these details are intended as general guidelines and may differ from the specific requirements of your region. To meet the exact requirements for rubber tiles under a commercial climbing frame in accordance with EN-1176, you should contact the local authorities, playground experts or a certified expert who can give you precise information on the required layer thickness for your specific drop height.
Can I be exempt from VAT?
We need your VAT identification number in order to be able to prepare a VAT-exempt offer for intra-Community supply (ICL). After verifying your VAT number in the European VIES system, the address associated with it will be used as the billing address. It is important that this address matches the one stored in our system for your VAT ID or VAT ID. Failure to do so will result in us not receiving approval for VAT deduction.
Are there assembly instructions for my product?
Our PRO play equipment is shipped on wooden pallets. You will be given detailed assembly instructions that guide you step by step on how to assemble the units. It is important to follow the instructions carefully in order to obtain TÜV certification.
Where can I find the construction manual for assembling Wickey playground equipment?
Your assembly instructions will be sent along with your order in the enclosed screw bag. In the unlikely event that you do not receive your instructions, please use our contact form to get in touch with our customer services team. We will send them to you as quickly as possible.
Which wood does Wickey use?
Impregnated Wickey wood made of pine or spruce is naturally and sustainably cultivated and is known for particular outdoor durability. It provides our products with a firm footing that ensures both fun and safety.
How and when can I reach you?
You can reach us via contact form and via good old telephone.
You can reach us from Monday to Friday, between 8 am and 3 pm, at the following number:+44 (0)330 808 0240
Please note our information on our hotline hours.
