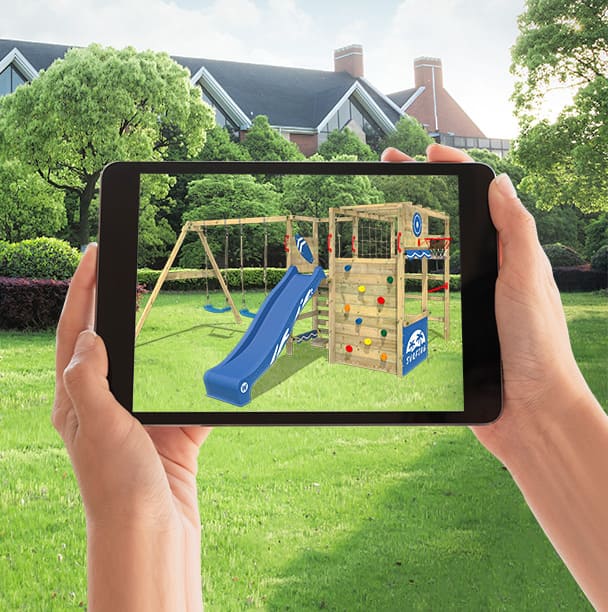

AR (Augmented reality) - Place a real-size climbing frame in your own garden!
Simply scan the QR code with your smartphone and open the link. Now you can project this climbing frame in real size at the desired place in your garden.

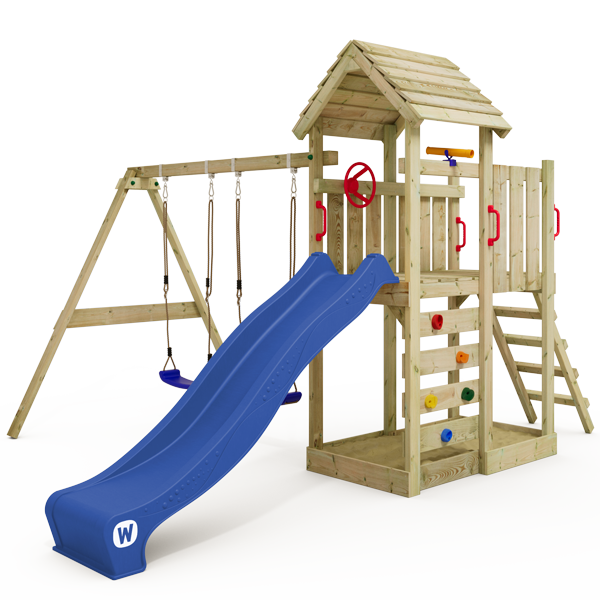

The mightly sails flutter in the northern wind as the pirate fleet heads for Treasure Island, led by the most infamous ship, the MultiFlyer. The crew leaves the ship and makes its way through the tropical jungle in search of the infamous Temple of Opal. Once they have arrived, the quest turns out to be not an easy one: hiddens ladders and climbing walls put the treasure hunters to the test as well as the quicksand in the caves. But the daredevils gang can´t be stopped even by the raging waterfall that pours thick drops onto the roof! Together they sway across the rushing river. All that remains now is to master the giant slide, which will lead directly into the temple´s secret treasure chamber. A piece of cake for such experienced adventurers! Soon another treasure will find its way to the pirate capital! Fly, Wickey, fly…!
Learn here, what makes Wickey so special.
|Platform height(s)||120 cm|
|Installation area||12,36 m²|
|Swing beam||9x9 cm|
|Length of slide||220 cm|
|Recommended quantity of sand||132 kg at a filling level of 60 %|
|Series / Post thickness||Wickey Flyer Series / 9x4,5 cm|
|Assembly guides||BILT® App 3D instructions|
As wood is a natural product, its volume changes as it dries out or absorbs moisture, so we recommend you drill some wooden elements yourself to ensure a precise fit and stability.
Not recommended for children under 3 years of age
For domestic use only under direct adult supervision
The indicated measurements and colours may vary slightly
¹ The advertised guarantee is valid for all wooden parts if you purchase our anchors at the same time. In any other case, the statutory guarantee will apply. Further information regarding the scope of the guarantee and its enforcement can be found in our guarantee declaration.
|Suitable posts||≤ 9x9 cm||≤ 9x9 cm|
|Suitable for all soil conditions|
|Mounting on the inside possible**|
|Quick and easy assembly|
Like every natural product, wood also has individual characteristics. Here you can find out more about the wood characteristics of our products.
The impregnation may cause the wood to be damp. It is therefore advisable to unpack it after arrival and let it dry for at least two days.
Pre-drill the holes before inserting the screws. This minimises the risk of damaging the alloy of the screws.
Tip: Strongly affected areas can be easily sanded!
Tip: Cracks with ¼ of the length and ¼ of the width are statistically harmless!
Tip: Unpack your wood directly and let it dry for at least 2 days!
Our top priority is making sure that your little ones can play safely. To guarantee this, we recommend purchasing our anchors together with your climbing frame and anchoring them securely in the ground with concrete. As our in-house anchors are tested and quality controlled, our wooden components come with a 10-year warranty when they are used. Of course, if using other anchors, the 2-year legal warranty still remains valid.
Steering wheels, binoculars, etc. can be mounted onto every climbing frame, precisely where you think they work best. Slides, however, must of course fit the platform of your climbing frame and be installed according to the manufacturer's instructions. Please pay attention to the respective safety distances indicated.
With the following guidelines, you can get a general idea: our swings/crossbeams can be loaded with a maximum of approx. 100 kg, and our standard swing seats for children can bear approx. 50 kg. The maximum load for the individual platforms is approx.100 kg.
Impregnated Wickey wood made of pine or spruce is naturally and sustainably cultivated and is known for particular outdoor durability. It provides our products with a firm footing that ensures both fun and safety.
A foundation plan is not necessary as our playground equipment is first fully assembled and then set in concrete in its final place. You can find more information about the construction of the basic frame in the question: "How is the base frame constructed and how are the anchors set in concrete?".
Once the wood of your climbing frame has dried, we recommend pre-drilling holes before screwing in the screws. This minimises the risk of cracks appearing. This also prevents the alloy of the screws from being damaged and helps to avoid premature rusting.
Proceed as follows when concreting in the anchors/erecting the base frame:
1. Assemble the base frame and place it in its final position. Please observe the safety distances indicated in the installation instructions.
2. Stake out the places around the posts where the base frame is to stand. Position the base frame so that all holes can be excavated easily.
Tip: the holes should be approx. 70cm deep and have a diameter of around approx. 30cm.
3. Mount the anchors on the inside of the posts.
4. Place the basic frame into its final position.
5. The climbing frame must be horizontally level. You can use stones or wooden wedges to achieve this.
6. Pour the ready-mixed concrete into the holes until they are filled to approx. 60cm. Make sure that only the anchors are covered with concrete, and that the posts remain free.
7. When the concrete has set, you can fill in the rest with topsoil.
Please ensure that the supporting posts of your climbing frame are in contact with the ground when concreting them in. Correct anchorage is necessary for the stability of your climbing frame and helps to prevent danger spots. It also protects your screws from premature rusting.
As parents, the welfare and safety of your children is always your - and our - top priority. For this reason, we recommend that you construct our climbing frames as shown in our assembly instructions. Although almost all of our climbing frames are constructed and designed in such a way that they could be assembled mirror-inverted, you can avoid danger spots by assembling them according to the assembly instructions.
Delivery is to your curb - and then it's your turn.
We deliver our playground equipment to you via courier. Small accessories and items will reach you via parcel service.
Your question is not listed? Here you can view the complete FAQs
Create the perfect climbing frame step-by-step, thanks to our innovative 3D instructions! Thanks to our cooperation with BILT®, you can complete your assembly using the app in no time at all. Download BILT® for free via the Apple or Google Play Store and start assembling your climbing frame.
Download BILT® free of charge to your smartphone or tablet via the Apple or Google Play Store.
The innovative 3D instructions will help you create the perfect climbing frame, step-by-step.
All the tools you need, shown clearly and at a glance.
Plan your construction in advance with the integrated time display for optimal time management.
Find out what makes Wickey so special, be inspired by our collection of great product videos from our customers, or use our detailed assembly video to help with your climbing frame assembly.
Note: We offer a 10-year warranty¹ on our wood if you purchase our anchors at the same time.
